8-Port KVM LCD Console
IOGEAR's GCL1908 is an integrated LCD console with an 8-port KVM (keyboard, video, and mouse) switch that offers secure access to 8 VGA, USB or PS/2 computers. It features a convenient rack mountable sliding / retractable 19" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving and streamlined integration. The GCL1908 fits into a universal 1U rack mount space.
The GCL1908 supports both PS/2 and USB keyboards and mice for the connected computers, and supports USB peripheral devices for the attached computers. A single GCL1908 can control up to 8 computers, but as many as 8 additional compatible KVM switches can be cascaded to reach up to 128 computers* controlled from a single keyboard, monitor and mouse console.

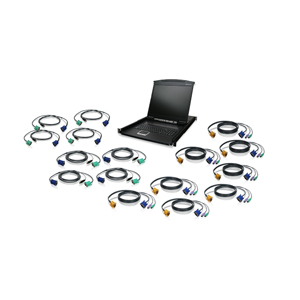

Additional USB KVM Cables
This kit includes an additional 7 USB KVM cables (3 x 6ft, 4 x 10ft). Our custom-made cables are designed to provide the highest signal capacity with the lowest signal loss. This important technology produces the highest quality video output - even after long distance transmission or in the most electronically noisy environments such as server cabinets. IOGEAR's premium custom-made KVM cables guarantee optimum signal integrity for high-grade server needs. The keyboard and mouse cables are made of double-sealed 22-gauge wire and are neatly wrapped with a heavy-duty video cable for simplified connections.
*Can only be cascaded with other IOGEAR KVMs: GCS1808 or GCS1716 models
- Features
- Integrated 8-port KVM console featuring a 19" TFT LCD active matrix monitor, keyboard and touchpad
- 1280x1024 resolution on 19" rack mount LCD provides a sharp video display
- Adjustable mounting rail to fit different sizes of racks
- Multiplatform OS support - Windows®, Mac and Linux®
- Easy to operate - computer selection via front panel pushbutton LED’s, intuitive OSD (on-screen display) and hotkeys
- External USB or PS/2 with VGA Console port
- Cascade up to 2 levels - control up to 128 computers from a single console*
- Security - 2 level password protection for OSD
- DDC Emulation - Video settings of each computer are automatically adjusted for optimal output to the monitor
- Rack mountable in a 19" (1U) system rack
- Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
- Fully Supports DDC2B
*Can only be cascaded with other IOGEAR KVMs: GCS1808 or GCS1716 models
- Specs
Function GCL1908KITU Dimensions GCL1908KITU Unit Dimensions Height 27" (68.58cm) Depth 1.75" (4.45cm) Length 17.75" (45.1cm) Unit Package Dimensions Width 26.75" (67.95cm) Height 32.5" (82.55cm) Depth 5.25" (13.34cm) Master Carton Width 26.75" (67.95cm) Height 32.5" (82.55cm) Depth 5.25" (13.34cm) Weight Master Carton Wt. 40.85lbs (18.54kg) Unit Pack Wt. 40.85lbs (18.54kg) Unit Wt. w/accessories 31.75lbs (14.4kg) Unit Wt. 27.75lbs (12.58kg)
