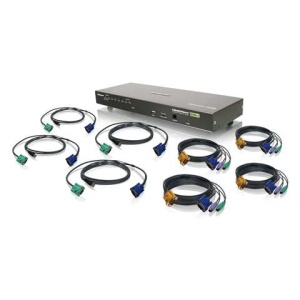

The GCS1808KIT KVM is a combo VGA switch that includes 8 KVM cables - Set of 4 USB and 4 PS/2 KVM cables.
Access and control of up to 64 computers* from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded* bringing the total number of connected computers to 64 computers* that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1808KIT features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.
The GCS1808KIT includes one USB port located on the front panel for easy access and sharing of any USB peripherals. Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the console and computers. The GCS1808KIT intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected.Benefits:- Equipped with USB & PS/2 KVM Cables
- 2 x 6ft USB & 2 x 6ft / PS/2 (G2L5202U / G2L5202P)
- 2 x 10ft USB & 2 x 10ft PS/2 (G2L5203U / G2L5203P) - Eliminates the excessive expense of additional monitors, keyboards and mice
-
Increases office space, productivity, and provides as an energy cost savings solution
- It contributes to a greener environment by reducing the amount of waste generated by multiple components
- An easy / efficient way to organize and streamline a growing or expanding server operation
*Cascade compatible with GCS1716 for control over 128 computers
- Equipped with USB & PS/2 KVM Cables
- Features
- Multi-platform OS support - Windows®, Mac, Oracle® Solaris and Linux®
- Supports both USB and PS/2, VGA computers
- Equipped with 4 USB & 4 PS/2 KVM Cables
- Easy to operate - computer selection via front panel LED’s, intuitive OSD (on screen display) and hotkeys
- Cascade up to 2 levels* - control up to 128 computers from a single console
- Security - 2 level password protection for OSD
- Maximum video resolution: up to 2048 x 1536
- Front USB Port** - for system upgrades and shared peripherals (fully compliant with USB 1.1)
- Rack mountable in a 19" (1U) system rack
- Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
- Fully supports DDC2B
*Cascade compatible with GCS1716 for control over 128 computers
**Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals- Specifications
Function GCS1808KIT Computer Connections Direct 8 Daisy Chain or Cascading 64 (via Cascade) Port Selection Hotkeys, OSD, Button Connectors Console 1 x SPHD-18 Male (Yellow) Computer/KVM 8 x SPHD-15 Female (Yellow) Power 1 x DC Jack USB 1 x USB 1.1 Type A Female Reset Switch 1 x Semi-Recessed Push Button Switches F/W Upgrade 1 x Slide Switch Port Selection 8 x Push Button Emulation Keyboard PS/2, USB Mouse PS/2, USB Video Resolution VGA 2048x1536, DDC2B Power Voltage DC 5.3V Amps 2.4A Scan Interval 1-255 sec Environment Operation Temperature 0~50C Storage Temperature -20~60C Humidity 0~80% RH, Non-condensing Housing Case Metal Dimensions GCS1808KIT Unit Dimensions Width 17in. Height 1.75in. Depth 6.25in. Unit Package Dimensions Width 10.25in. Height 9.625in. Depth 22.375in. Weight Unit Pack Wt. 13.97lb Unit Wt. w/accessories 11.11lb Unit Wt. 5.58lb
