- Overview
Note: Part number change:
Old Part Number: GHDMIS4KIT

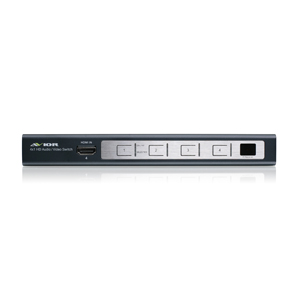

New Part Number: GHDSW4KITProvide additional HDMI® connections to your HDTV for the Ultimate Viewing Experience
IOGEAR's HDMI Switch Kit includes 5 HDMI High Speed cables which enables you to connect multiple HD source devices to your HDTV for your viewing pleasure. It's an ideal solution for connecting multiple HD media devices such as:- DVRs / Set-top boxes from cable and satellite providers
- Blu-Ray / DVD players
- Video game consoles
- Media PCs and computers
- A/V receivers and more
Switching between Media Sources
Select and view the desired source device just by a click of the remote or a push of the front-panel push-button.Provides User-Friendly Convenience
No need to mess around with the TV's A/V onscreen input selections. The switch eliminates the hassle of figuring out the correct A/V input for the desired device.- Features
- 4 HDMI inputs and 1 HDMI output
- Works with Blu-ray / DVD players, DVR players, video game consoles, media servers, computers, set-top boxes and more
- HDMI certified and HDCPcompliant
- Superior resolution
- HDTV: maintains 480p, 720p, 1080i and 1080p resolution
- PC Support: VGA, SVGA, XGA, SXGA and WUXGA
- Switching port via remote control or front-panel push-button
- IR Remote inlcuded
- Front-panel LED for port and power status
- Backwards compatible with DVI devices with a DVI to HDMIadapter*
*HDMI (F) to DVI (M) Adapter Model No: GHDFDVIMW6
- Specifications
Function GHDSW4KIT Video Resolution 480p, 720p, 1080i and 1080p; VGA, SVGA, XGA, SXGA and WUXGA Video connections Input HDMI Output HDMI Connectors Video Input 4 x HDMI Type A 19 Pin Female Video Output 1 x HDMI Type A 19 Pin Female Cable Type High Speed HDMI Cable Cable Length 3 x 6ft and 2 x 10ft LEDs On Line 4 Power On 1 Power Adapter Universal Power Adapter 100~240 (50/60Hz) Power Voltage DC 6V Amps 1A Power Consumption 3watts (max) Environment Humidity 0-80% RH (Non Condensing) Operation Temperature 32F~122F (0C~50C) Storage Temperature -4F~140F (-20C~60C) Housing Case Plastic Dimensions GHDSW4KIT Unit Dimensions Width 6.5in. Height 1in. Depth 3.5in. Unit Package Dimensions Width 10.25in. Height 6.5in. Depth 12.25in. Weight Unit Pack Wt. 2.75lb Unit Wt. w/accessories 1.8lb Unit Wt. 0.28lb
