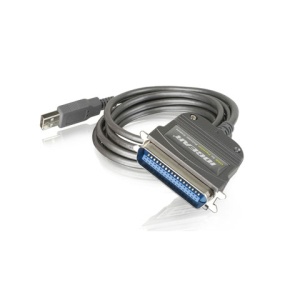

USB to Parallel Adapter

Item Number: GUC1284B

Overview

IOGEAR's USB to IEEE-1284 Bi-directional Printer Cable allows you to send print job from an USB-only computer to parallel printers. This cable is fully compliant with USB 1.1 and IEEE 1284 1994 specifications. It features bi-directional data transfer at the parallel port to assure high-speed printing and a maximum data transfer rate of 12 Mbps. It is easy to install, hot swappable, and does not require any external power adapters. This USB to IEEE-1284 Bi-directional Printer Cable is also backed by IOGEAR's 3 Year Limited Warranty.

Features

Allows USB Only Computers to send Print Jobs to Parallel Printers
Fully Compliant with USB 1.1 and IEEE 1284 Specifications
Bi-directional Data Transfer over Parallel Port Allows High-speed Printing
Up to 12 Mbps Data Transfer Rate
Single cable design - Great for notebook users
Low Power Consumption, No Need for External Power Adapter
Plug-n-Play
IOGEAR's solid 3-year limited warranty - Built to last

Specifications

Function	GUC1284B
Housing
Case	Plastic
Operating Temperature	20 to 50 degrees (Celsius)
Storage Temperature	0 to 70 degrees (Celsius)
Operating System Support	Windows®, 98SE, 2000, ME, XP, Vista, 7
USB Specification	USB 1.1 compliant
Transfer Rate	12Mbps
Humidity	20-80% RH, (Non Condensing)
Cable Length	6.0 ft. (1.8 m.)
Power Connections	Bus powered

Dimensions	GUC1284B
Unit Dimensions
Width	2.09 in. (5.3 cm.)
Height	0.75 in. (1.95 cm.)
Length	1.69 in. (4.3 cm.)
Unit Package Dimensions
Width	6 in.
Height	8.5 in.
Depth	2.5 in.
Master Carton
Width	13 in.
Height	18.5 in. (47 cm.)
Depth	16.5 in. (41.9 cm.)
Master Carton Qty.	24
Weight
Master Carton Wt.	14.2 lb.
Unit Pack Wt.	0.45 lb.
Unit Wt.	0.22 lbs. (0.1 kg.)
